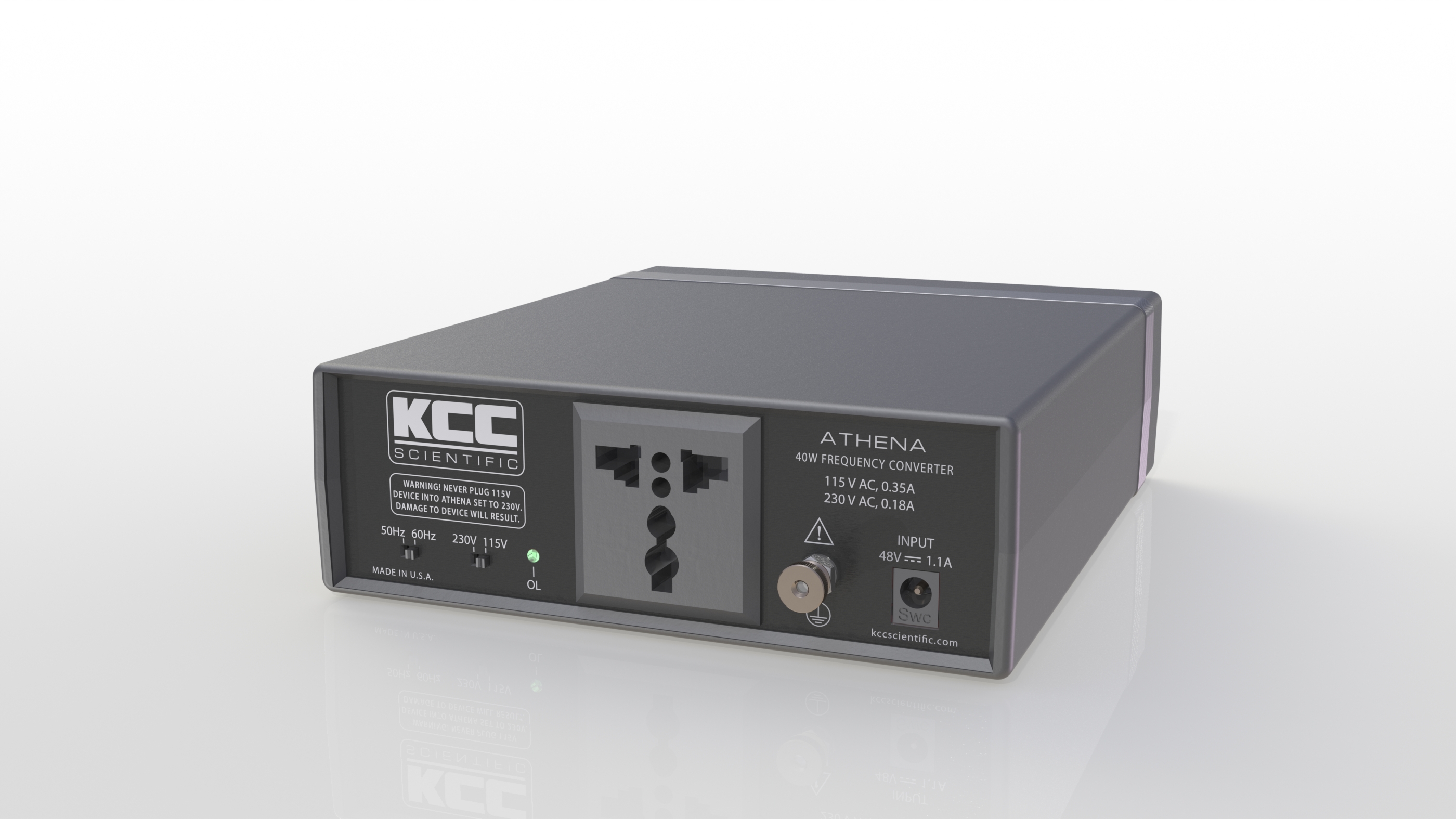

Introduction. The Model 1930 (shown above left) is our original 50Hz to 60Hz or 60Hz to 50Hz converter, designed to provide proper voltage and frequency to vintage electric clocks, turntables and other devices. It can power a 60Hz clock or other device when only 50Hz power is available or vice versa. But what if you want to power large backlit clocks, performance clippers and shavers, audio equipment such as turntables and tape players? The very affordable Athena offering almost 4x more power than the Model 1930, is the answer!
Athena is our step-up from the original Model 1930. She is the product of choice if the Model 1930 doesn’t offer enough power, or if you may need more power in the future. She’s also the obvious choice if your device has a 3-prong power plug, or if you need 230V output capability.
Athena will power devices up to 40 watts, or 50 watts for short periods. Frequency can be selected from the front panel as needed, either 50Hz or 60Hz. In addition, the device can be set with a front panel switch for either 115V or 230V AC output! Athena can be powered from anywhere in the world regardless of frequency or voltage. Athena will do all of the voltage, frequency, plug, and receptacle conversion you need.
With Athena, you can power virtually any clipper or shaver out there, larger turntables and tape players, and much more. And, she travels easily. Take her with you outside the USA to assure that you can power your 115V AC 60Hz equipment anywhere in the world, with precisely the same frequency you had in the USA. Or, if you live in a country using 230V AC 50Hz, take her with you to power your 230V 50Hz equipment where only 60Hz is available. You will also love her very affordable price. To learn more, or to purchase your Athena, please visit our KCC Scientific website.
Wall Adapter Input Voltage: 100-240VAC, 47-63Hz
IEC Input Power Cord: US, Canada, Japan, UK, Europe, Australia, China, Malaysia
Athena Allowable DC Input Voltage (if wall adapter is not used): 48V DC
Frequency: User Selectable 50.0000Hz or 60.0000Hz
Frequency Tolerance: ±0.0002% Max
Waveform: Pure Sine Wave
Voltage: User Selectable 115V AC or 230V AC
Voltage Tolerance: Regulated, ±2%
Maximum Continuous Output Power: 40 Watts, 50 Watts peak (short term)
Output Receptacle: Universal Worldwide Receptacle
Enclosure Dimensions: 178mm (7”) L x 152mm (6”) W x 51mm (2”) H
Weight: 1.81kg (4lbs)
Model: Mean Well GSM60B48-P1J Medical Grade Desktop Power Supply
Cord Length: 1500mm
DC Plug: 2.1mm center pin positive
Wall Adapter Output Voltage: 48V ±5%
Safety and Compliance: Frequency processor (main) unit is designed to UL and International Safety Standards, CE.
Input Wall Adapter complies with ANSI/AAMI ES60601-1 / ES60601-1-11, TUV EN60601-1 / 60601-1-11 for Safety
Compliance to EN55011(CISPR11) class B, EN61000-3-2,3, FCC PART 15 class B,CAN ICES-3(B)/NMB-3(B) for EMC and Emissions
Indicators: Red LED indicates Overload
Input Grounding: Grounding Post and 8ft wire provided for user installation
Temperature Range: 0-40°C
